Inverter (VFD)

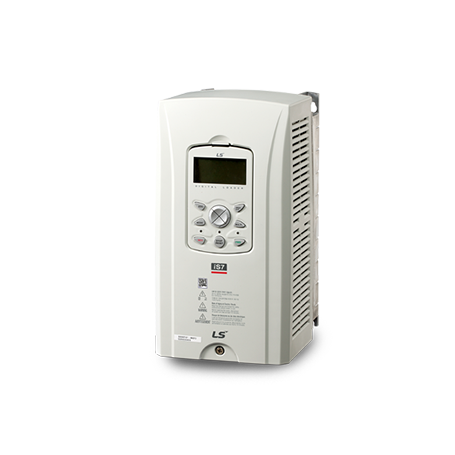

iS7
Control mode: V/F, V/F PG, Sensorless Vector, Vector - Speed Control Range 1:100 (Sensorless Vector), 1:1000 (Vector) - LV Trip Delay Function, Cooling Fan Control - Droop Control, KEB Function, Flying Start, Flux Brake - PMSM Control
G100/G100C
Application Adaptability - Enhanced V/F Performance - Built-in Potentiometer - DIN rail Mountable (below 4kW) - Output 2 Relays - Quick Parameter Setting Group

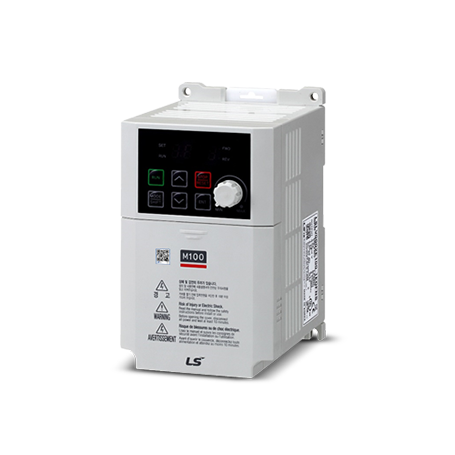

M100
Built-in EMC Filter (C2 Class) - Built-in DB Unit 1.5kW - DIN-Rail Mountable - Built-in Potentiometer - Remote Keypad Connection with RJ45
S100
Built-in DC reactor - Built-in EMC filter - Global compliance (UL, CE) - Dual rating operation - Overload capacity - Built-in Safety Torque Off (STO) - Simple cooling fan replacement

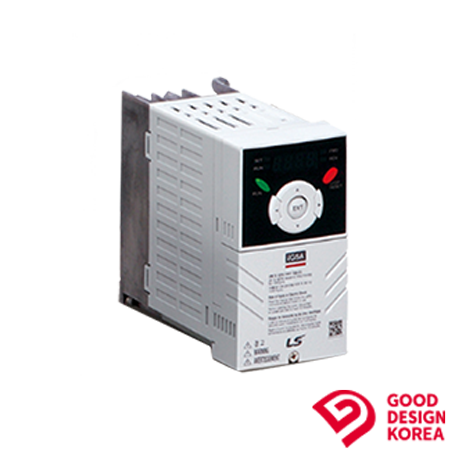

iG5A
Sensorless Vector Control - Built-in PID Control - Built-in Dynamic Braking Circuit - Easy Change of Fan - Cooling Fan Control - Compact Size

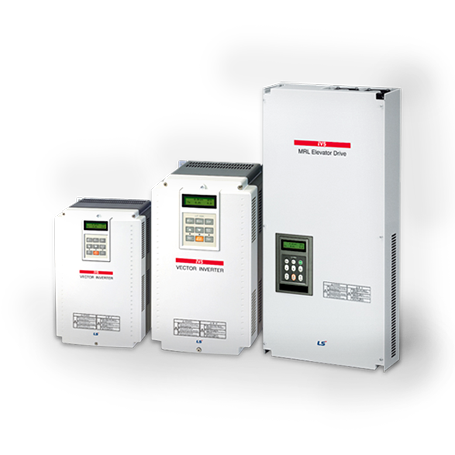

iV5
Optimized Solution for System Drive - High Performance Control system - User friendly Interface - Various Option for System Application
PLC XGB Series

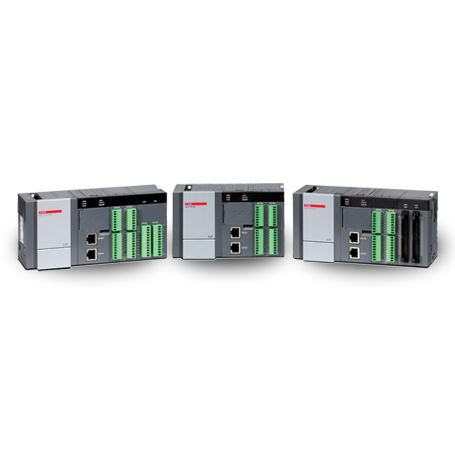

XBC/XEC U-Type (Ultimate Performance)
Max. 352 I/O points - Max. 2 communication modules - RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet - SD memory format, FTP link, Diagnosis - 2-port Ethernet switch - FTP server support - Web Server - PLC monitoring - Time synchronization - E-mail service

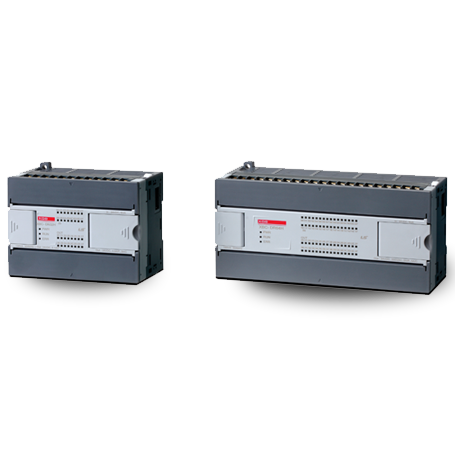

XBC/XEC H-Type (HIGH Performance)
Max. 384 I/O points - Max. 2 communication modules - RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet - Cnet 2 ports - High-speed counter - Positioning (Tr. type only)

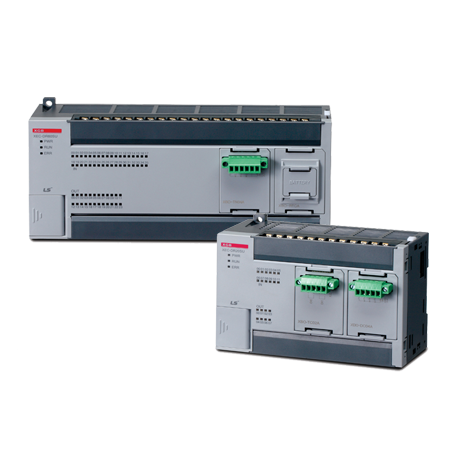

XBC/XEC SU-Type (Standard)
Max. 284 I/O points - Max. 2 communication modules - RS-232C, RS-422/485, Ethernet, CANopen, Profibus-DP, DeviceNet, EtherNet/IP, RAPIEnet - Cnet 2 ports - High-speed counter - Positioning (Tr. type only)

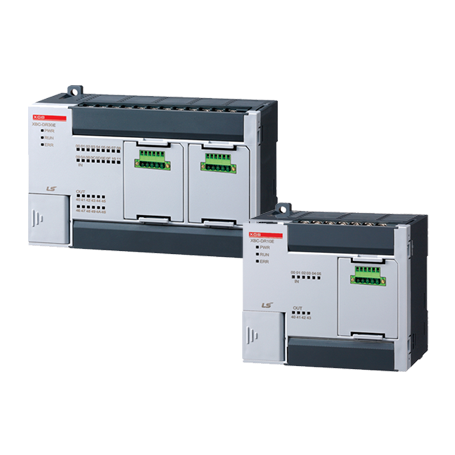

XBC/XEC E-Type (Economic)

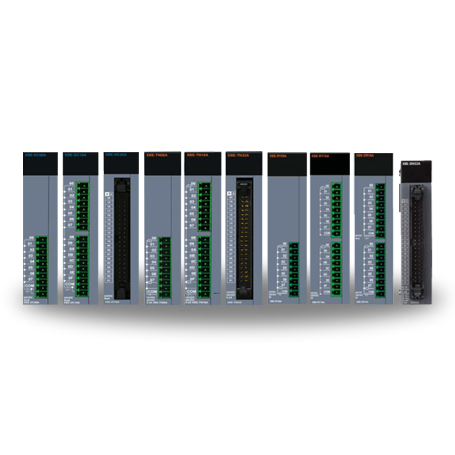

Max. 38 I/O points - Option: Digital I/O, Analog I/O, Memory, etc. - Built-in functions - Cnet 1 ports - High-speed counter

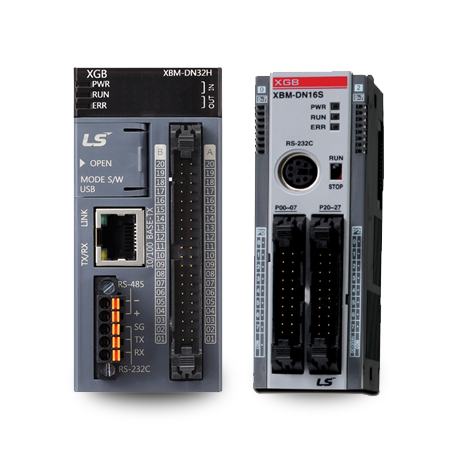

XBM/XEM Type (Slim)
Max. 256 I/O points - Ethernet 1 port (H-type only), Cnet 2 ports - High-speed counter - Positioning

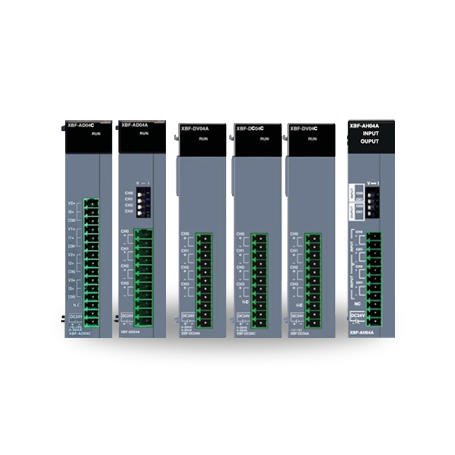

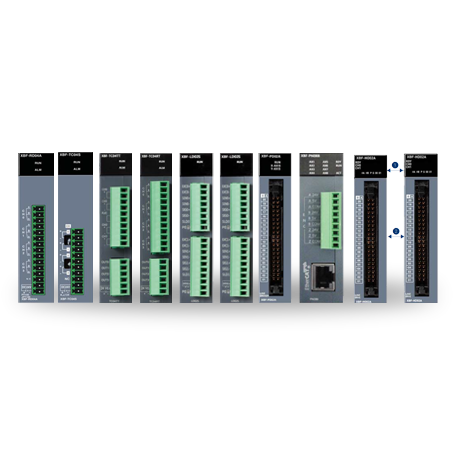

XGB Expansion Special Module
RTD - Thermocouple - Temperature controller - Load cell - Positioning - High speed counter - etc.

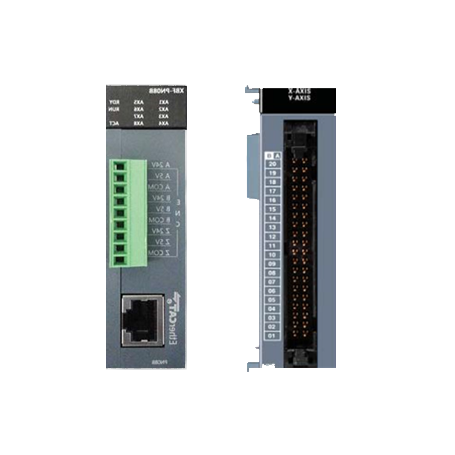

XGB Expansion Motion & Positioning Module
XGB Positioning Module (Network type) - XGB Positioning Module (Pulse type)
PLC XGT Series

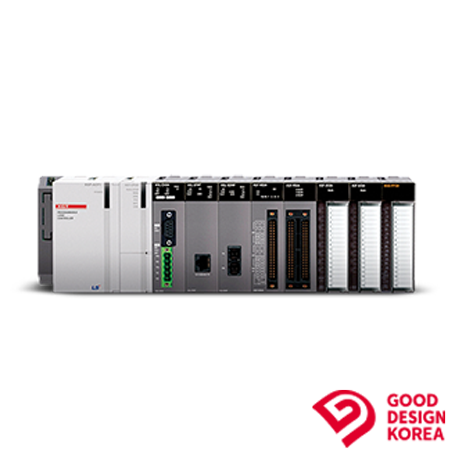

XGT Series (XGK, XGI, XGR)
XGT series incorporate the latest technological achievements in Programmable Logic Controller by experience and dedication to quality in design and manufacturing - (XGK: Ladder Programming) - (XGI: IEC Standard Programming) - (XGR: Redundancy System)
Human Machine Interface (HMI)

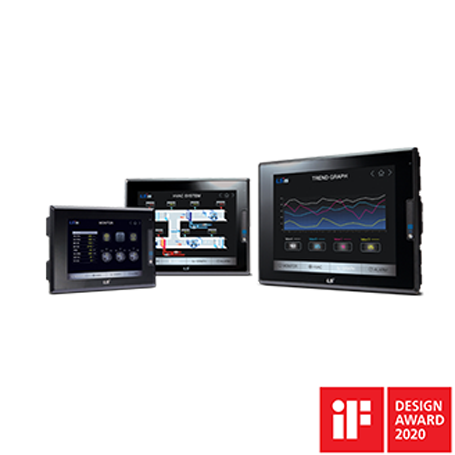

iXP2 Series
Responsive touch screen - Dual Core CPU offers high speed communication and processing - Multiple interface methods to cope with the Internet of Things - Multi touch and gesture-control screens - Robust IP66 aluminum frame - One-to-one interchangeability with existing iXP series - Screen gesture - Object gesture - Multi-touch - Dual monitor mode and extension mode

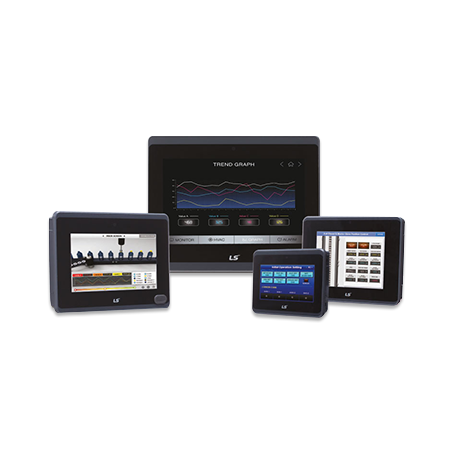

eXP2 Series
Performance Enhancement (eXP > eXP2) - More Convenient Control - Portrait Mode - PDF Viewer - FTP Client - VNC Viewer

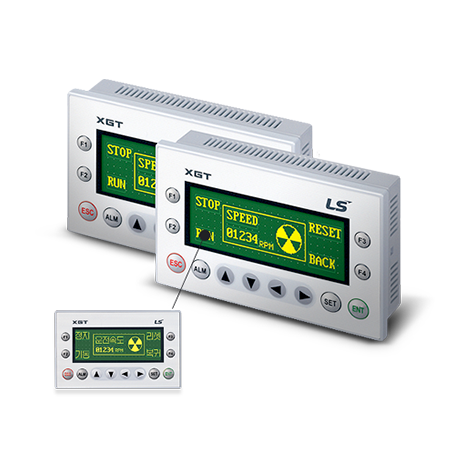

XP10 Series
Minimum-sized XGT Panel XP10 using full-featured GUI programming tool of the XGT panel, the user can configure athe system easily. LS ELECTRIC’s know-how reinforces your cost-competitiveness with economic HMI and its various functions and strong reliability can realize system operation at its extreme.

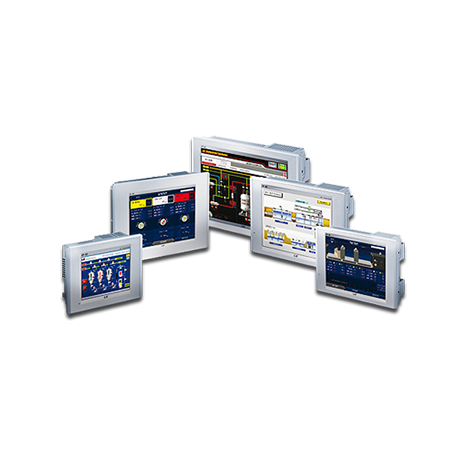

XP Series
USB Host - 2 USB interface channels Various access devices can be used using the USB I/F - Access to mouse, keyboard, a USB external hard disk, barcode reader, and USB hub is possible. Continuous upgrades and developments to cope with other drivers are in the works - A type USB Cable (XPO-USBC) - USB cable is used for screen data transmission and XP Runtime updates - Effective Use of USB Memory
SCADA

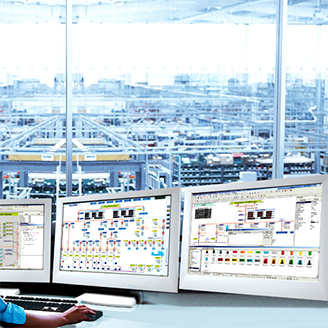

XGT InfoU
Easily visualize software to collect and monitor data made from the field - Automatic web conversion of the previous project through Wizard - Open structure with extensibility and compatibility - Enhanced graphic engine to meet various requirements - Action and VB script to help powerful and flexible application creation - Graphic library - Variety of graphic files supported - Engineering template - Convenient dedicated graphic objects - Precise and fast screen movement - Layer function - Built-in graphic script - ActiveX control - Virtual keyboard and editor for Panel PC
Servo Motion

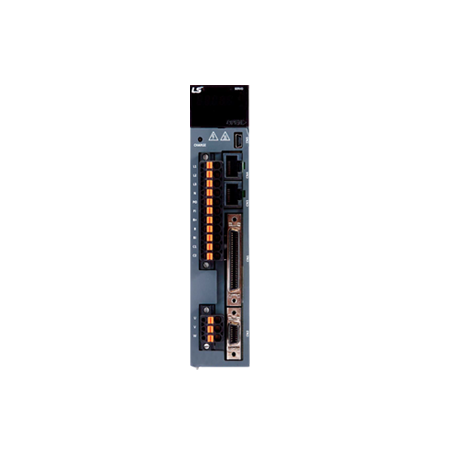

Servo Drive
Your motion systems visualize the perfect solution though the LS comprehensive product range for optimal drives and applications. It's high-performance vector, precision, and speed control are user-friendly and cost effective. Series (L7S, i7NH, L7NH, L7P, L7C)

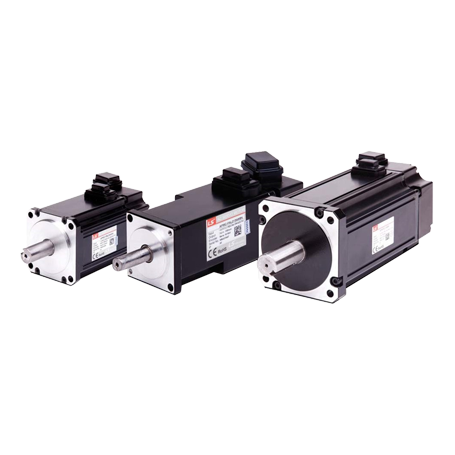

Servo Motor
Flat type rotating servo motor - Encoder with bi-directional high speed serial communication - Automatic identification (Motor ID/ Encoder pulse) - Biss protocol - Easy wiring (15 encoder wires ~ 7 encoder wires) and anti-external noise
